Inclinometer casing: purpose
The inclinometer casing is a fundamental component for subsurface displacement monitoring. It is designed to guide and maintain the correct orientation of the inclinometer probe along the entire measurement profile.
Features

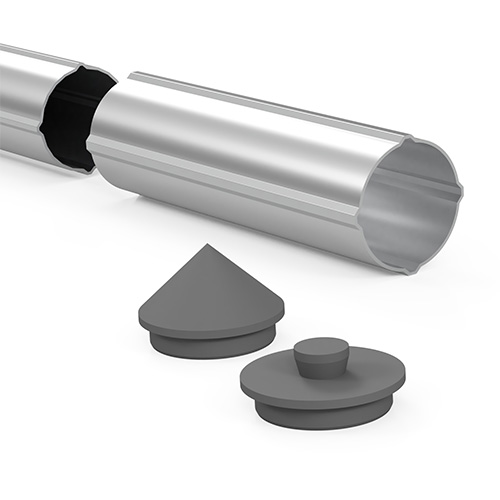

The casing features four longitudinal grooves arranged at 90° intervals, ensuring proper probe alignment during measurements and high repeatability and accuracy in inclinometer surveys.
Installation

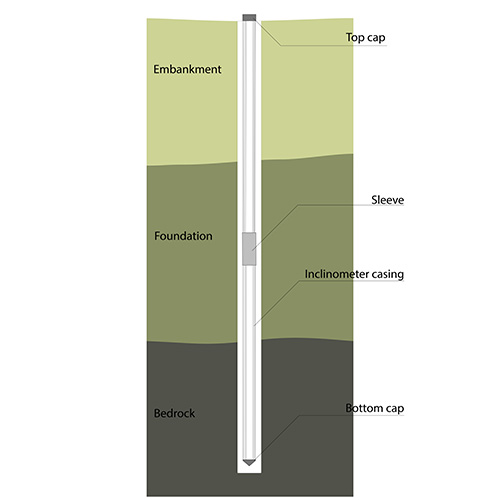

Installed inside boreholes or integrated into structural works, the casing deforms together with the surrounding soil or structure, enabling the detection of displacement and deformation over time.
Materials
Manufactured from high-strength materials such as ABS or aluminium, the casing provides stability, durability, and corrosion resistance, even in aggressive environments.
Accessories

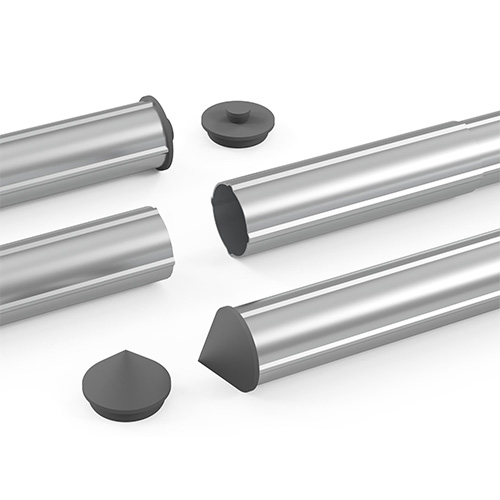

The system is completed with dedicated accessories, including coupling sleeves, bottom and top caps, and anchors, ensuring correct installation, alignment, and casing protection during both installation and operation.
