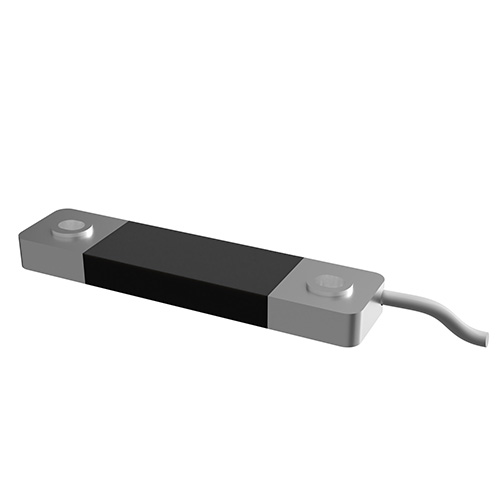

Resistive strain gauge: how it works
Based on a Wheatstone bridge configuration with integrated strain gauges, the sensor detects deformation through variations in electrical resistance and provides a proportional output signal in mV/V.
Operation and installation

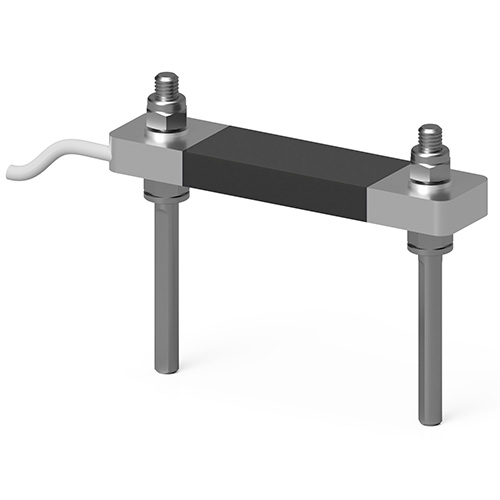

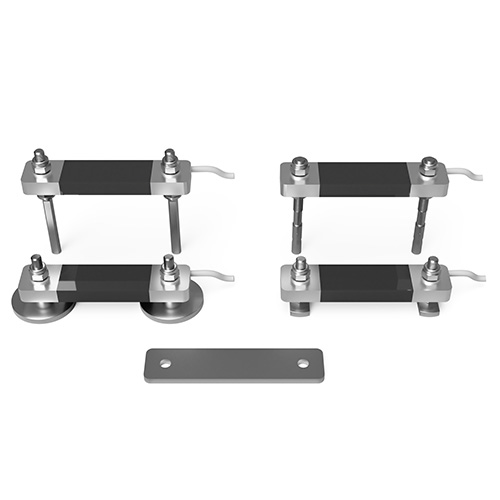

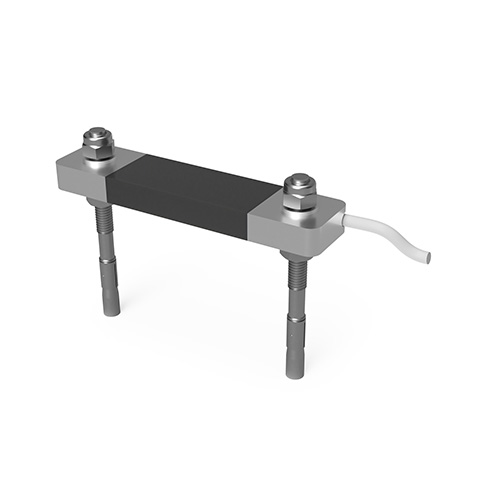

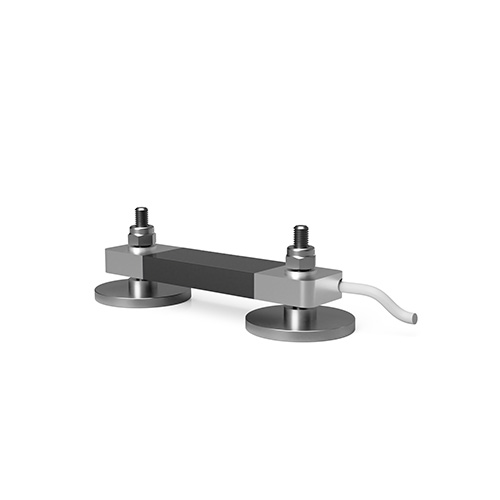

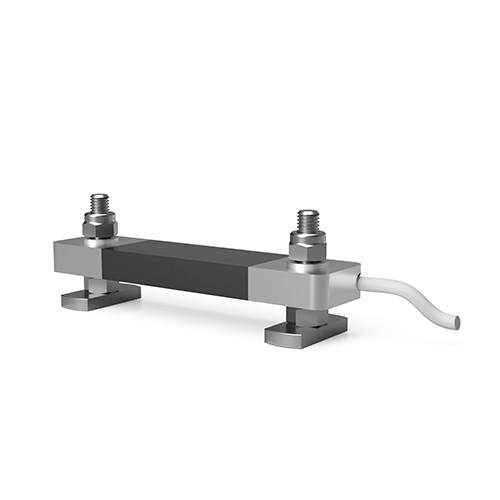

The gauges operate in both tension and compression and are suitable for installation on steel structures or for embedding in concrete, ensuring versatility across a wide range of structural monitoring applications. They are particularly suitable for high-frequency monitoring applications, such as pile testing.
Construction
The robust housing and resin encapsulation of the sensing element provide protection against impact, moisture, and harsh environmental conditions, enabling reliable operation on construction sites.
Applications
Thanks to their fast response, these instruments are particularly suitable for pile/load testing and other applications requiring high-frequency measurements.
